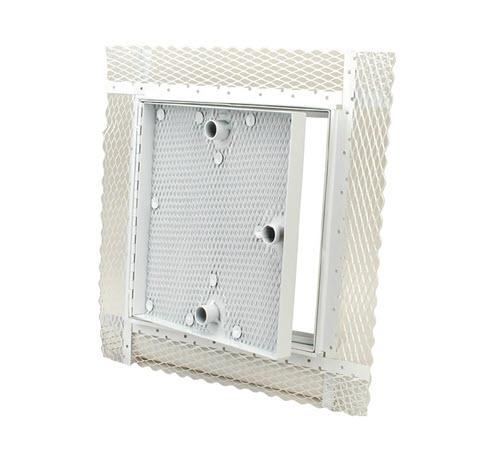

The WB AP 510 Series Recessed Plaster Bead Access Door is a durable, recessed access panel designed for installation drywall walls and ceilings in applications where a fully-concealed appearance is desired. Featuring a heavy-duty, 14 gauge steel door and a white baked, paintable enamel finish, door panel is recessed to receive plaster up to 1″ thick. Plaster covering the door finishes flush with the surrounding field, leaving only the narrow frame edges exposed.

Specifications

• Door: 14 Gauge Steel with 1″ Recess Lined with Expanded Metal Lath
• Frame & Trim: 16 Gauge Steel, 1/4" Wide Safety Edge
• Plaster Bead: 3" Wide 24 Gauge Galvanized Casing Bead and Expanded Metal Lath (the space from the expanded flange to the 1/4" safety edge of the door will accommodate 3/4" of plaster)
• Finish: White Baked Enamel, Paintable Surface
• Latches: Flush, Stainless Steel Cam Latch (opens with screwdriver)
• Hinges: Continuous Stainless Steel Piano Hinge (allows opening to 180°)
• Applications: Walls, Ceilings
