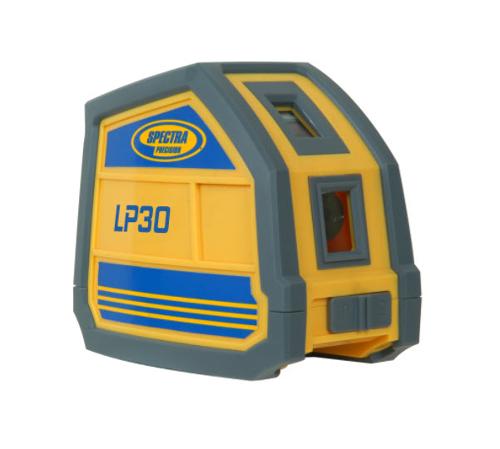

The Spectra Precision® LP30 Laser Layout Tool is designed to handle a wide range of interior construction applications. This rugged laser layout tool offers several benefits to general and interior contractors, electricians, plumbers and a variety of tradesmen.

The LP30 projects 3 beams – one beam up, one down and one horizontal beam.

Features

• Automatic self-leveling and plumb assures accuracy and fast setup
• One person installation of walls, doors, ceiling track and other overhead fixtures without the need for a plumb-bob
• Fast, one person 90_ layout of rooms, walls, tile, carpet squares and fixtures
• Dust, water and shock-resistant for improved reliability and minimal repair costs
• Durable unit with protective rubber over-molding withstands a drop of up to 3 feet (1 m) onto concrete and still maintains consistent accuracy

Specifications

• Level & Up Beam Accuracy: 1,2 ± 1.5 mm @ 5 m (± 1/16 in. @ 17 ft)
• Down Beam Accuracy: 1,2 ± 1 mm @ 0.5 m (± 1/16 in. @ 2.5 ft)
• Self-Leveling Range: ±4° from level
• Out-of-Level Indicator Beam: flashes
• Working Range: Up to 30 m (100 ft)
• Laser Class LP30: - 2 / LP50 - 3R, 3A
• Laser Type: 635 nm
• Beam Shape: Square
• Battery Type: 2 AA alkaline
• Battery Life: 20 hours (alkaline)
• Low Battery Indicator: Power/Low Battery LED changes to Red
• Manual Mode and LED On and beam flashes
• Compensator Lock Indicator
• Operating Temperature Range: –10 °C to 45 °C (14 °F to 113 °F)
• Size: H x L x W 90 x 104 x 61 mm (3.54 x 4.09 x 2.40 in.)
• Weight: 0.31 kg (0.69 lb)

Includes

• Pouch
• Mounting accessories
• Target
