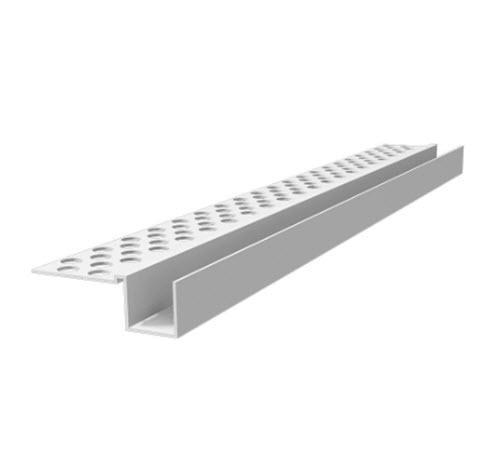

Surface-mounted reveal used at the juncture of walls, ceilings, or other dissimilar materials. Always use a rigid backing or blocking material behind surface-mounted reveals. Vent clips are provided with vented channel reveals to connect reveal sections and to assist in alignment.

Caulk all intersections, butt joints, ends, and corners at the time of installation. Not to be used in lieu of control joints or expansion joints. Factory fabricated intersections are also available for all ClarkDietrich channel reveals.

• Finish Thickness: 1/16" - 3/32"
• Minimum Board Thickness (A): 1/2"
• Reveal (B): 3/4"
• Perforated Flanges (C): 1-1/8"

30 pcs/ctn
